Lefthand Righthand Rotation Carbon Steel LBS Sleeve For Offshore Petroleum Crane Winch

Shijiazhuang Jun Zhong Machinery Manufacturing Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Lefthand Righthand Rotation Carbon Steel LBS Sleeve For Offshore Petroleum Crane Winch

  • 1
  • 2
  • 3

Brand Name : LBS

Model Number : Custom design

Certification : DNV, ABS, GL, LR, BV, CCS, RINA, NK,

Place of Origin : Hebei,China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 1000 Pieces/Sets Per Month

Delivery Time : 20 to 30 work days, depends on order amount and specification

Packaging Details : Export standard wooden case

Port : Tianjin China

Grooving Type : Special Groove

Sling Type : Wire Rope

Color : Customer Requirement

equipment : CNC machining center

Application : Ship, port,Hoisting machinery industry...

Contact Now

Carbon Steel LBS Sleeve Offshore Petroleum Crane Winch Lefthand Righthand Rotation

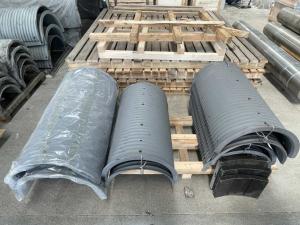

Product structure:
1.The split sleeve is composed of spiral groove and parallel groove. 2.The grooved cylinders are split in halves for easy installation either by welding or bolting to an existing drum.
3.Split sleeves can be placed over smooth and ungrooved drum,suitable for modification or replacement of drum.
4.The groove design conforms to the specified wire rope structure, diameter and length.
Machinable product material​:
Carbon steel, Nylon polymer, alloy steel, aluminum, all kinds of high-strength steel Q345, Q420, Q460, 20GrMo, 40GrMo, 42GrMo, etc

Product application:
1. Marine machinery: offshore petroleum crane winch, drawworks and hoist
2. The petroleum industry: oil drilling rig, petroleum tractor hoist, petroleum workover rig, trailermounted pumping unit winch , etc
3. Engineering machinery: tower crane, piling machine
4. Crane machinery: the bridge lifting machine, tower crane
5. The hoist: building wipe wall machine, winding machine
......
Product specifications:

1) Wire rope or cable diameter (mm)
2) Drum diameter (mm)
3) Drum length (mm)
4) Rope capacity
5) Drum material
6) Maximum operating load on rope or cable
7) Type of rope entry
8) Direction of wire rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges
11) Detailed drawing of the drum

TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc

LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc

FLEET ANGLE.doc

Product advantage:
The rope capacity for this product is impressive, ranging from 10-10000 M. This allows users to choose the perfect size for their project, without having to worry about running out of rope. Additionally, the rope groove type for the product is Lebus, which is an industry standard. This ensures that the product is reliable and efficient, letting users rest assured.
The LBS Sleeve product is perfect for those who require grooved sleeves for their winch drum. It is designed to work with a variety of winch drums, making it a versatile and useful product. The product is also customizable, with a range of colors available to suit any taste. The spooling device fit type ensures that the product is easy to use and provides excellent results.
LBS Sleeve product can help solve the problem of bitten rope in wire rope winding process. LBS groove
system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, extend the service life of wire rope can be more than 500%, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.
Technical parameters and application:

No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
2 13 18 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch
3 22 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch, drawworks
5 28 32 36 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch

......
